FM45 4×5 Wide-Angle Leather Bag Bellows | HSINCAM

Pre-order
Ships in 4–6 weeks from order confirmation. Build begins upon order. Full payment required at checkout.

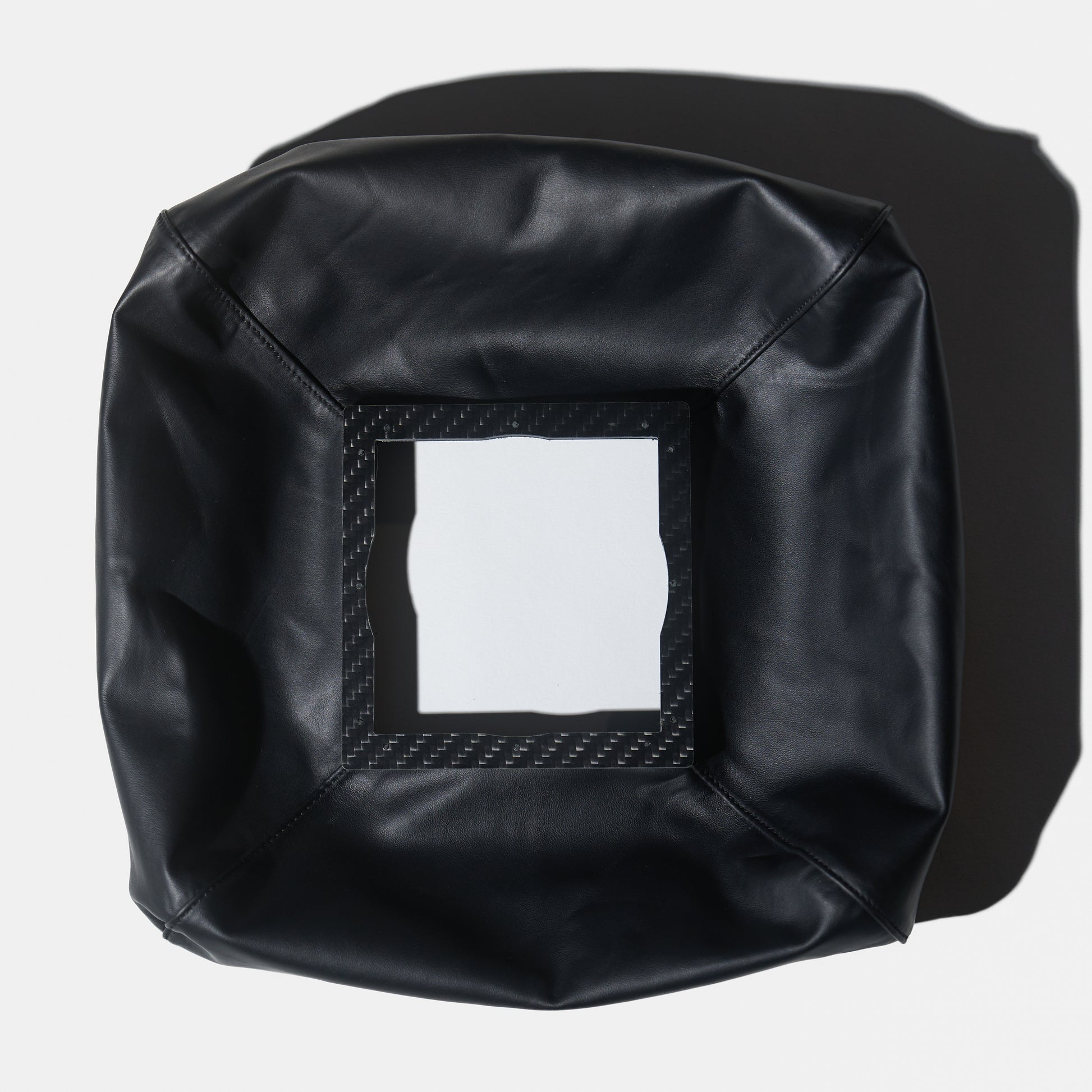

The wide-angle bag bellows for the FM45 line. Genuine leather. Essential for architecture and interior work.

Why a bag bellows is needed

With ultra-wide lenses, the camera operates at extremely short flange distances and a standard bellows is compressed near its limit, with its pleated folds bunched tightly around the front standard. Moving the front for rise/fall or shift drives those folds into the image path, vignetting the frame — for architectural facades and interior corrections that depend on movements, this means the required shift simply isn't usable.

The bag bellows is a single-layer construction with no pleated folds. Even at infinity focus, the front standard retains the camera's full designed movement range.

Structure & system

Genuine leather — single-layer construction with no pleated folds. Front standard movements stay clear of the image path even at short flange distances.

Buckle interface — shared across FM45-L and FM45-P, and with the standard bellows. Swapped on location without tools.

No mechanical interference at infinity focus — the bellows does not contact the lens board or rear standard.

Specifications

In the box

1× FM45 wide-angle leather bag bellows
Serial registration

Camera body and standard bellows not included. Pair with the standard bellows for full coverage from wide to telephoto.
